Installing AWX (Basic)

Note

Allow 1 hour to complete this task, which involves installation of the operator and an AWX server instance

Installed versions (at the time of writing): -

  • Operator 2.19.1

  • AWX 24.6.1

Installation and configuration of the AWX server is achieved using the kubernetes AWX operator. Clone the project and follow the Basic Installation section of the guide.

With the operator installed you will need to create an AWX server using a Kubernetes Kustomization. This will rely on also creating secrets used to configure the AWX server, secrets that define the AWX URL, its database and username and passwords.

Here we use the infrastructure database previously configured.

The Kustomization.yaml file (located in the root of the clone repository) will probably look like this:

---
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

resources:
- awx-im-infra-secrets.yaml
- awx-im-infra.yaml
namespace: awx

inm our case the Kustomization defines two resources:

awx-im-infra-secrets.yaml
awx-im-infra.yaml

Our awx-im-infra-secrets.yaml defines two Kubernetes Secrets, named:-

  • awx-im-infra-postgres-configuration

  • awx-im-infra-secret-key

The first provides the following secrets:

database (awx)
host (database.im-infra.svc)
password (****)
port (5432)
ssimode (prefer)
target_session_attrs`` (read-write)
type (unmanaged)
username (awx)

And the second provides:

secret_key

The awx-im-infra.yaml resource defines an AWX (custom resource) and probably looks like this:

ipv6_disabled: true
control_plane_priority_class: im-application-high
secret_key_secret: awx-im-infra-secret-key
postgres_configuration_secret: awx-im-infra-postgres-configuration
service_type: ClusterIP
ingress_type: ingress
ingress_class_name: nginx
ingress_tls_secret: awx-im-infra-tls
ingress_annotations: |
  cert-manager.io/cluster-issuer: letsencrypt-nginx-production
hostname: awx.xchem.diamond.ac.uk

With the Kustomization and resources defined, create the AWX server:

kubectl apply -k .

Configuring AWX (Basic)

Note

Allow several hours to complete this task, which involves configuring and checking the AWX application server

With an AWX server running you now have to configure it, which will require at least some of the following objects:

  • An organisation

  • Credentials

  • A team

  • Users

  • Projects

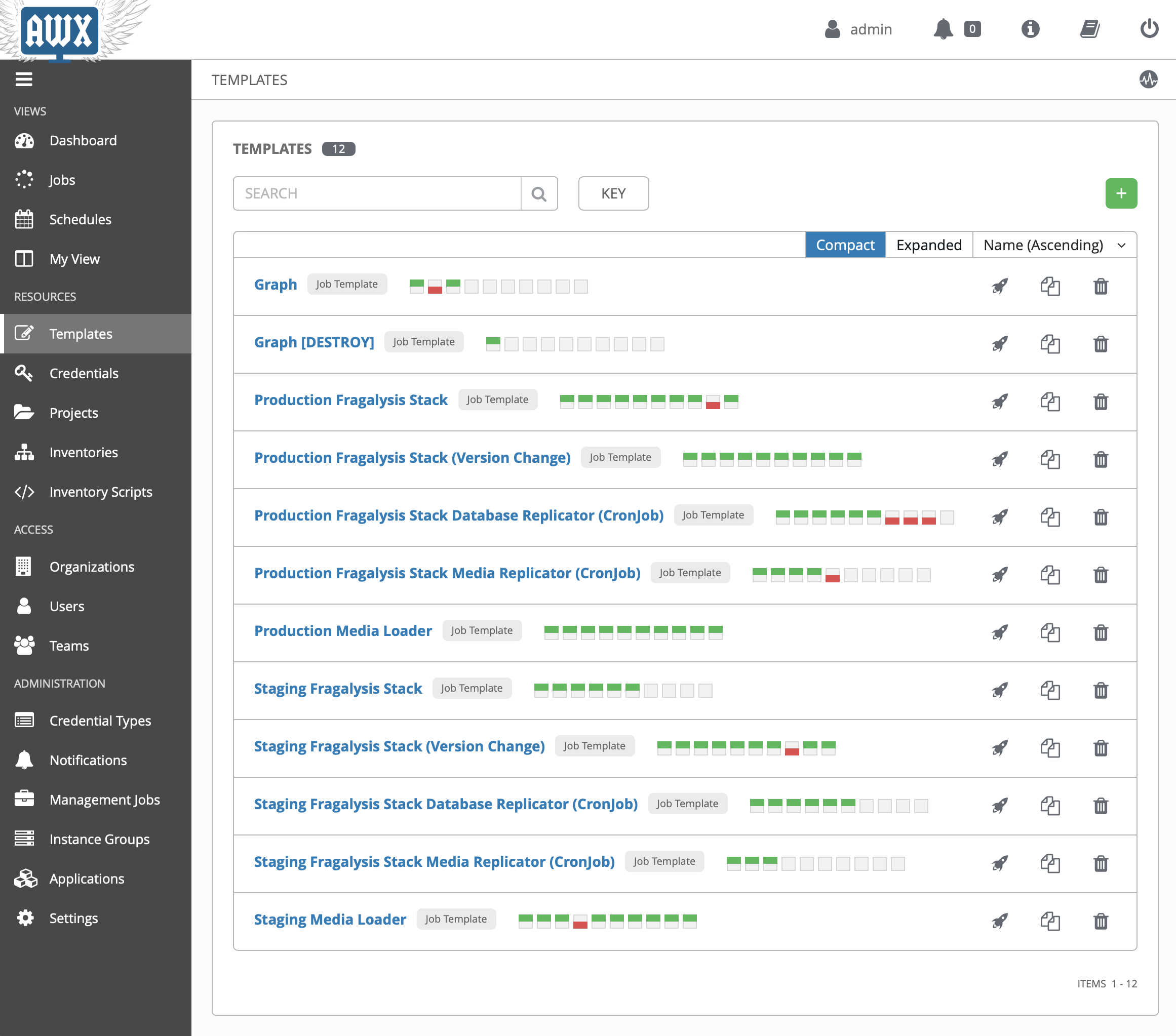

  • Job Templates

  • Workflows

../../_images/awx-production-templates.png
