The NFS Servers

There is an NFS server to provide dynamic provisioning and shared (replication) volumes for both the DEVELOPMENT and PRODUCTION clusters. An separate NFS sever also exists to provide a a volume for Fragalysis (Django) Media files, used by the Media Loader AWX jobs.

The Dynamic Volume Server

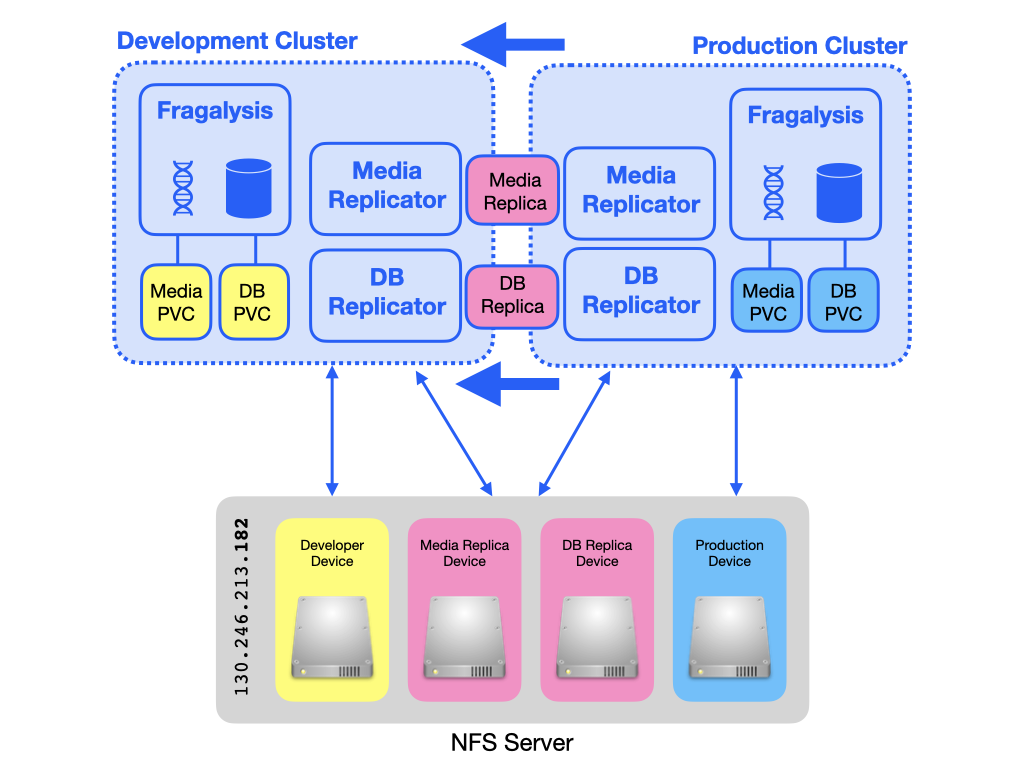

This is a c2.large (8 core, 8Gi) instance type with Floating IP 130.246.213.182 that has two attached volumes that act as roots for the respective cluster’s NFS provisioner. All application-based NFS volumes (the Kubernetes Persistent Volume Claims) are served from one of the devices (one device dedicated to the development cluster and one for production cluster).

Two more volumes are used to provide static exports for the production media and database replicas.

../_images/frag-actions.014.png

An AWX job launches a CronJob that replicates the production media (using rsync) and database (using pg_dump) to the static volumes. These replicas form the basis of the re-import into the Staging stack and any User stack that requires them.

Warning

Media replication is no longer used. The ability replicate media data between servers was removed on 25 May 2021. The documentation remains for historical reference purposes only.

The Static Media Volume Server

Warning

The Static Media Volume Server is no longer used. The ability to load media files directly from a NFS volume was removed on 25 May 2021. The documentation remains for historical reference purposes only.

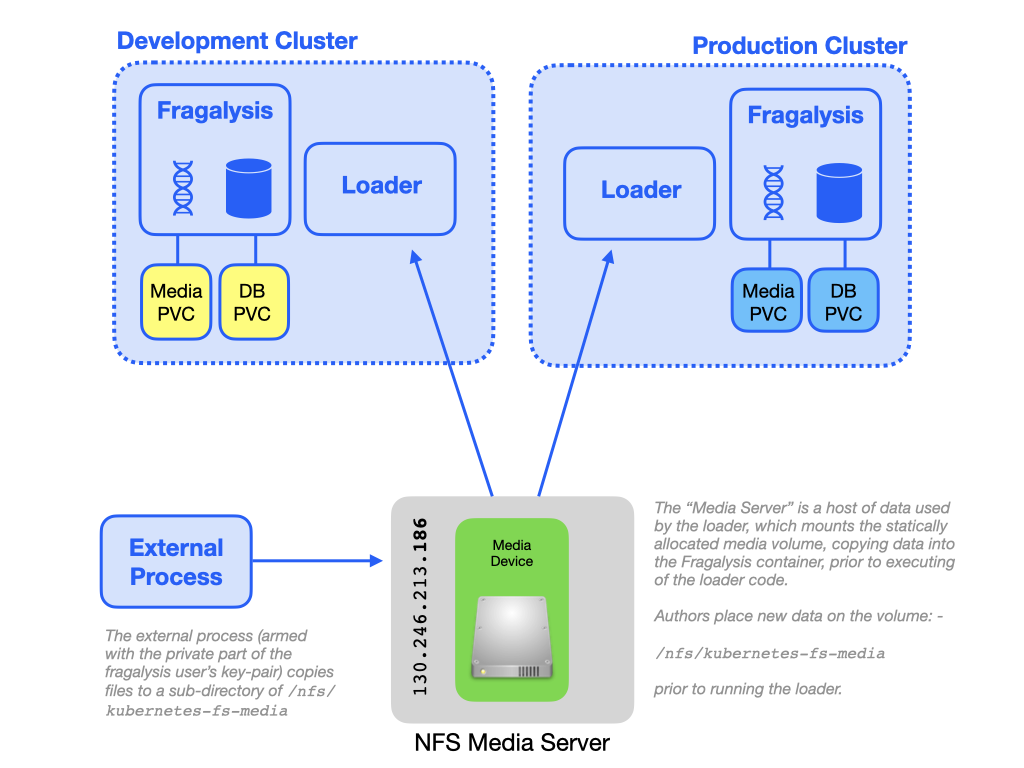

This is a m1.large (2 core, 8Gi) instance type with Floating IP 130.246.213.186 that has one attached volume that acts as static root for new Fragalysis (Django) Media data.

../_images/frag-actions.015.png

A user deposits new files onto the NFS export (the External Process) for use by Loader Jobs in production, staging and user stacks.

Creating the servers

The servers were instantiated manually using the STFC/OpenStack console and then configured using the site-nfs.yaml and site-nfs-media.yaml plays in the root of this project.

This repository should be cloned to the STFC project bastion machine.

The Dynamic Volume Server

  1. Using the STFC/OpenStack Console…

    1. Create an NFS server instance

    2. Create four suitably sized volumes and attach them to the NFS server. There is a volume for dynamic allocation of development and production cluster volumes (say 4TB each), a volume for the media replica (say 100Gi) and one for the database replica (say 100Gi)

    3. Attach the designated floating IP (130.246.213.182)

  2. Review the site-nfs.yaml file and ensure the various device: values are correct (i.e. the device mappings are what you expect)

  3. From the bastion machine run the playbook (i.e. run ansible-playbook site-nfs.yaml)

With this done your NFS server should be available from either cluster.

The Static Volume Server

  1. Using the STFC/OpenStack Console…

    1. Create an NFS server instance

    2. Create a suitably sized volume (say 1TB) and attach it to the NFS server

    3. Attach the designated floating IP (130.246.213.186)

  2. Review the site-nfs-media.yaml file and ensure the device: value is correct (i.e. the device mapping is what you expect)

  3. From the bastion machine run the playbook (i.e. run ansible-playbook site-nfs-media.yaml)

With this done your NFS server should be available from either cluster.

Volume Snapshots

A Scheduled AWX Job Template runs regularly [1] to create volume snapshots of the key NFS volumes. These snapshots are not guaranteed to be re-usable, especially of the data on them was being modified during the snapshot (which is why snapshots are taken at an obscure time). The snapshots are made in the event of disaster recovery. Data should always be backed up separately.

The AWX Job that’s responsible for creating volume snapshots (which runs on the DEVELOPER cluster) is: -

  • Maintenance Volume Snapshot

It is driven by the snapshot_volumes Ansible variable, a list of volume names in the xchem-follow-up Project. The default value of the variable is:

snapshot_volumes:
- kubernetes-nfs-dev-dynamic
- kubernetes-nfs-prod-dynamic
- kubernetes-nfs-frag-stack-media

Once a snapshot is made the playbook removes others older than 6 days so, in the default setup, only one snapshot is maintained.
